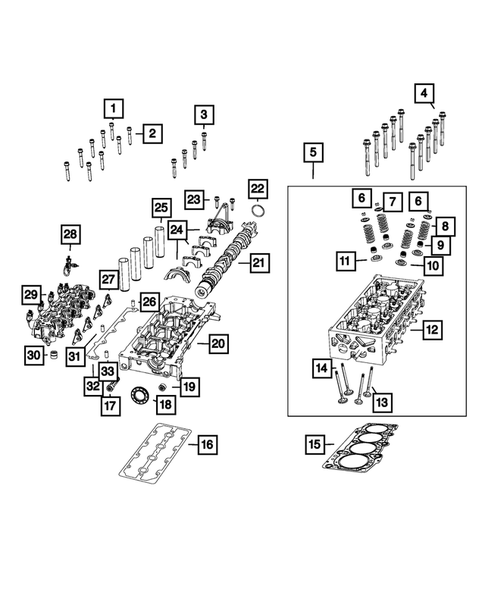

Camshaft and Valve for 2017 Jeep Renegade

1

Bolt, Mounting, Outer

68119645AA

Bolt

Camshaft Carrier To Cylinder Head. M8x1.00x50.00.

MSRP $3.65

$2.60

MSRP $3.65

$2.60

2

Bolt, Mounting, Inner

6510212AA

Bolt, Mounting

Camshaft Carrier To Cylinder Head. M8x1.00x30.00. Partial.

MSRP $2.20

$1.57

MSRP $2.20

$1.57

3

Bolt And Washer, Mounting

68293334AA

Multiair Actuator To Camshaft Carrier. Multiair Actuator To Cylinder Head.

MSRP $2.75

$1.94

MSRP $2.75

$1.94

4

Cylinder Head Bolt

68293333AA

Cylinder Head To Cylinder Block.

MSRP $3.40

$2.42

MSRP $3.40

$2.42

5

Cylinder Head ¹

68574783AA

With Valves.

MSRP $436.00

$356.43

MSRP $436.00

$356.43

6

Valve Spring Retainer Lock

4892820AB

MSRP $1.65

$1.15

MSRP $1.65

$1.15

7

Valve Spring Retainer, Intake And Exhaust, Upper

4892678AB

Valve Spring Retainer

Upper.

MSRP $2.05

$1.45

MSRP $2.05

$1.45

8

Valve Spring

68320099AA

MSRP $6.85

$4.96

MSRP $6.85

$4.96

9

Valve Guide Seal

4892674AB

MSRP $8.50

$6.11

MSRP $8.50

$6.11

10

Valve Spring Retainer, Intake, Lower

4892681AB

Valve Spring Seat, Intake, Lower

Intake.

MSRP $2.30

$1.63

MSRP $2.30

$1.63

11

Valve Spring Retainer, Exhaust, Lower

4892679AB

Valve Spring Seat, Exhaust, Lower

Exhaust.

MSRP $1.80

$1.27

MSRP $1.80

$1.27

13

Engine Intake Valve

4892676AB

MSRP $19.45

$14.04

MSRP $19.45

$14.04

14

Engine Exhaust Valve

68187410AA

MSRP $84.00

$55.89

MSRP $84.00

$55.89

15

Cylinder Head Gasket

4893239AA

NOTE If Complete Or Long Block Engine Is Not Listed For Your Application You Must Order a Short Block Engine Listed In Illustration 305.

MSRP $58.50

$40.31

MSRP $58.50

$40.31

16

Cam Carrier Gasket

68395365AA

NOTE If Complete Or Long Block Engine Is Not Listed For Your Application You Must Order a Short Block Engine Listed In Illustration 305.

MSRP $17.65

$12.77

MSRP $17.65

$12.77

17

Multiair Actuator Oil Supply Filter

68189847AA

ENGINE OIL

MSRP $34.55

$25.05

MSRP $34.55

$25.05

18

Camshaft Seal

4892648AC

MSRP $12.65

$9.14

MSRP $12.65

$9.14

20

Camshaft Carrier

68281387AA

Partial. Includes Tappets And Camshaft Caps. NOTE If Complete Or Long Block Engine Is Not Listed For Your Application You Must Order a Short Block Engine Listed In Illustration 305. Up To And Including Production Date 02/17/2014.

MSRP $2,120.00

$1,378.85

MSRP $2,120.00

$1,378.85

21

Engine Camshaft

68228749AA

ENGINE

MSRP $457.00

$300.30

MSRP $457.00

$300.30

22

Engine Expansion Plug

6106046AA

Core Plug

CORE

MSRP $4.70

$3.33

MSRP $4.70

$3.33

23

Hex Flange Head Bolt, Mounting

6509767AA

Hex Flange Head Bolt

Camshaft Cam to Camshaft Carrier. Camshaft Bearing Cap To Cylinder Head.

MSRP $1.65

$1.15

MSRP $1.65

$1.15

25

Spark Plug Tube

4892687AE

Serviced With Item 4 Camshaft Carrier.

MSRP $23.60

$17.06

MSRP $23.60

$17.06

27

Roller Finger Follower

68088240AA

MSRP $46.70

$32.20

MSRP $46.70

$32.20

28

Temperature Sensor

68088241AA

Air Temperature in the Multiair Actuator. Oil.

MSRP $223.00

$147.63

MSRP $223.00

$147.63

29

Multiair Actuator

68463929AA

IGNITION SWITCH

MSRP $1,645.00

$1,068.20

MSRP $1,645.00

$1,068.20

30

Valve Tappet

68249809AA

MSRP $46.45

$31.97

MSRP $46.45

$31.97

31

Dowel Pin, Mounting

6511868AA

Dowel Pin

M10x21.00. Multi-Air Actuator To Camshaft Housing. Actuator To Camshaft Carrier. Multi-Air Actuator To Cylinder Head. Multiair Actuator To Cylinder. Multiair To Cylinder Head. Uniair Actuator To Head.

MSRP $3.65

$2.60

MSRP $3.65

$2.60

32

Gasket

4892649AB

Multiair Actuator. Multi-Air Actuator.

MSRP $20.20

$14.58

MSRP $20.20

$14.58

33

Dowel Pin, Mounting

68285338AA

Dowel Pin

Cylinder Head to Cylinder Block.

MSRP $5.05

$3.63

MSRP $5.05

$3.63
